Summerview 1

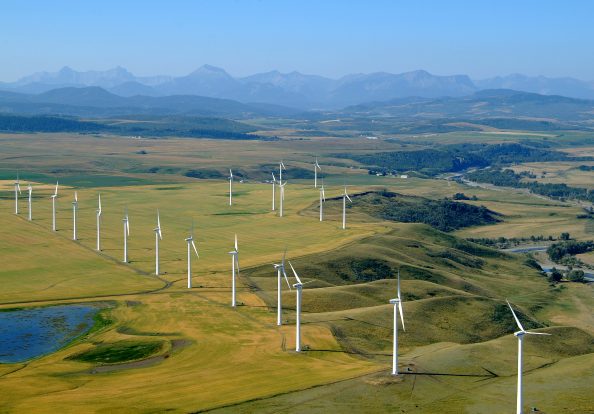

The Summerview 1 wind facility is located adjacent to the Summerview 2 wind facility, in the northeast portion of the municipal district of Pincher Creek, Alberta, north of the Oldman River and adjacent to the west boundary of the Peigan Reserve.

The facility began with the commissioning of one of the largest wind turbines in Western Canada at that time. It produced 1.8 megawatts of power and was commissioned in January 2002.

Phase I of this project was completed in 2004. The facility currently includes 38 Vestas V80 wind turbines with 65-metre towers for a total of 68 megawatts of installed capacity. It produces more than 209,000 megawatt-hours annually.

The second phase came online in 2010 and brought the wind facility to a total of 136.2 megawatts built over 6,000 acres.

Environmental highlights

The Summerview 1wind facility has a UL ECOLOGO® Certification for Renewable Energy.

Turbine dimensions

• The 65-metre tower is made up of rolled steel and comes in three pieces. The entire tower weighs 132,000 kilograms
• Each blade is 40 metres long; the rotor is 35,000 kilograms and is made up of three blades
• The nacelle containing the generator and gearbox is about the size of a small motor home and weighs 63,000 kilograms
• The foundation is nine to ten metres deep and four metres across. One hundred and two tension type bolts run the full length of the foundation

Note: TransAlta gratefully acknowledges Natural Resources Canada (NRCan) for its support for this project through the Wind Power Production Incentive (WPPI) program.
